CPU: Quanzhi H3 ARM Cortex-A7 quad core
NPU：Mali400MP2 GPU @600MHz Supports OpenGL ES 2.0
Memory: 1GB DDR3 (shared with GPU)
Onboard storage: TF card slot (up to 32GB), 8GB eMMC Flash memory
System: Android, Ubuntu, Debian and other operating systems

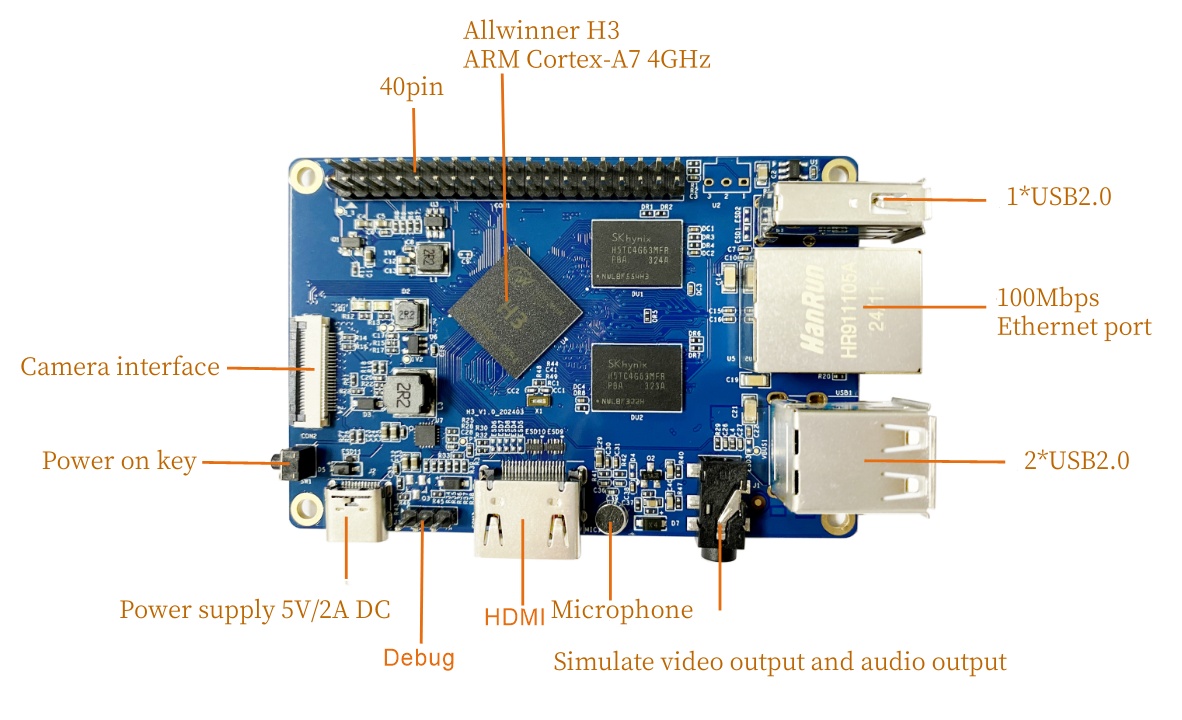

| Hardware specification parameters | |
| CPU | Allwinner H3 ARM Cortex-A7 quad core |
| GPU | Mali400MP2 GPU @600MHz Supports OpenGL ES 2.0 |
| Memory | 1GB DDR3 memory (shared with GPU) |
| Onboard storage | TF card slot (up to 32GB) |
| 8GB eMMC Flash Memory | |
| Onboard network | 10/100M Ethernet RJ45, WIFI onboard network |
| Camera with video input | CSI interface |
| Video output | HDMI, CVBS |
| Audio input | MIC |
| Audio output | 3.5mm audio port and HDMI |
| Power | DC input, MicroUSB (OTG) cannot be used as power input |
| USB 2.0 ports | 3 USB 2.0 HOSTs, 1 USB 2.0 OTG |
| Low-level peripherals | 40 pin connector, compatible with Raspberry Pi |
| Debugging serial ports | UART-TX,UART-RX,GND |
| LED lights | power indicator lights, and status indicator lights |
| Button | power supply (SW4) |
| systems | Android, Ubuntu, Debian, etc |
| Introduction to appearance specifications | |
| Product size | 85mm×55mm |
| Weight | 43g |
